General information about the PSoC6™ port¶

The PSoC™ 6 family is built on an ultra-low-power architecture, and the MCUs feature low-power design catering to tailored application domains. The PSoC6™ port supports boards powered by the Infineon PSoC6 family of microcontrollers and currently supports the following MCUs:

PSoC™ 62 - Performance
PSoC™ 63 - Bluetooth™ Low Energy

Supported boards¶

The following boards are supported on this port:

Board name	Connectivity	Special feature
CY8CPROTO-062-4343W	Wi-Fi, BT	microSD card slot, external flash memory, thermistor, user button
CY8CPROTO-063-BLE	BLE	user button, compact form factor
CY8CKIT-062S2-AI	Wi-Fi, BT	user button, compact form factor, USB-C, MEMS microphone, radar sensor, pressure sensor, 6-axis IMU, 3-axis magnetometer

For more hardware-related details, refer to the following sections.

CY8CPROTO-062-4343W¶

Pinout¶

Technical specifications¶

Links for product details:

CY8CPROTO-063-BLE¶

Pinout¶

Technical specifications¶

Links for product details:

CY8CKIT-062S2-AI¶

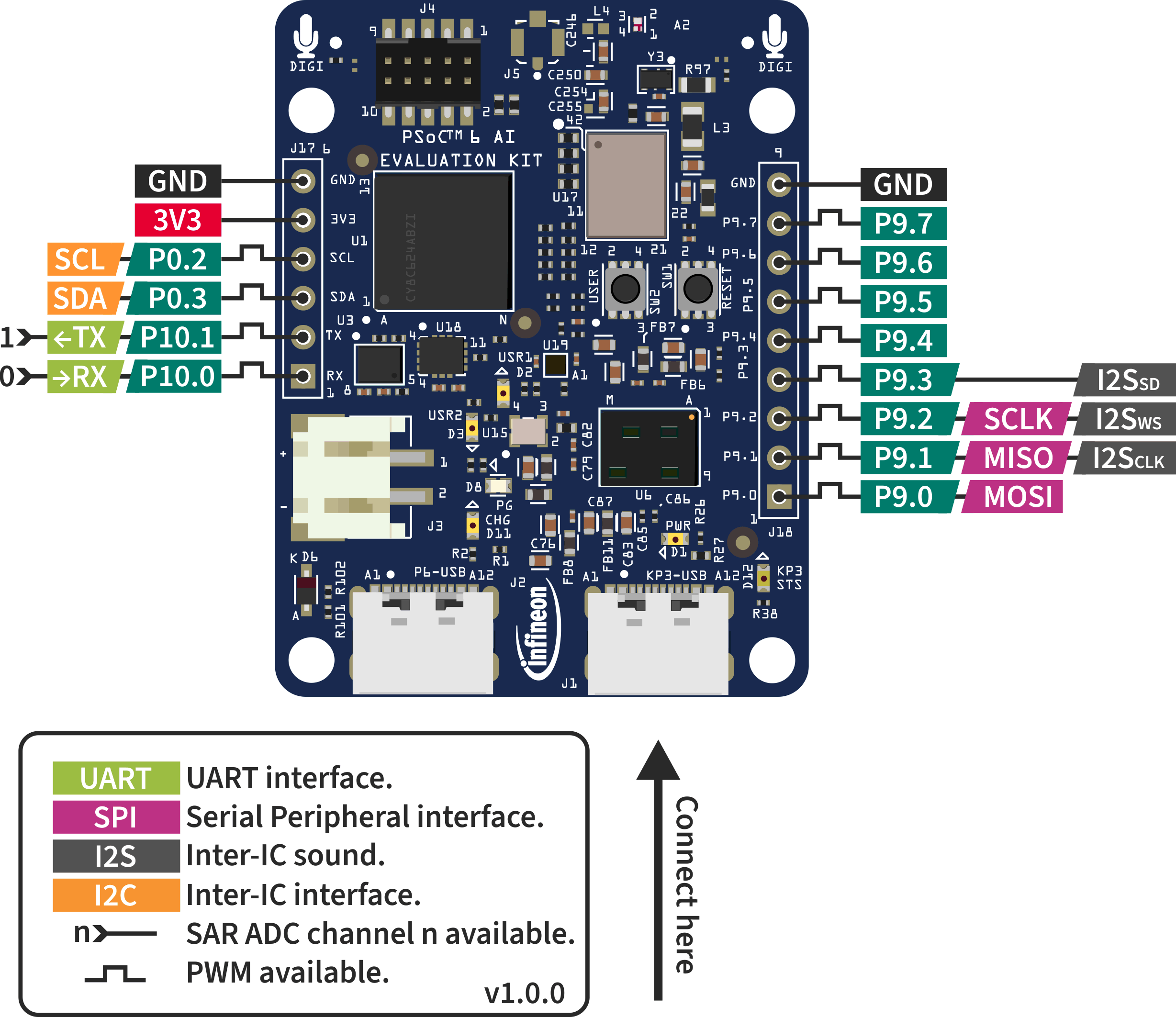

Pinout¶

Technical specifications¶

Links for product details:
