Installing MicroPython

To support the MicroPython PSoC6™ port installation the mpy-psoc6 utility script is provided for Windows and Linux. You can easily download from your OS terminal with the following command:

curl -s -L https://raw.githubusercontent.com/jaenrig-ifx/micropython/ports/psoc6/tools/psoc6/mpy-psoc6.sh > mpy-psoc6.sh

Add execution rights to the script:

chmod +x mpy-psoc6.sh

Find all the available commands an options by running the script with the command help:

./mpy-psoc6.sh help

Quick Start

With the mpy-psoc6 utility script donwloaded, the fastest way to get you up and running with micropython is to run the quick-start command of the script:

./mpy-psoc6.sh quick-start

The command will take care of the following:

  • Install all required software to work with MicroPython

  • Deploy the latest version of MicroPython PSoC6 firmware on your board

  • Launch Arduino Lab MicroPython IDE

This command is supporting the getting started tutorial for the first time. Once you get familiar with MicroPython and its environment, the device-setup command will be more appropiate to install MicroPython on PSoC6™ boards, and upgrade your device with the lastest firmware.

Device setup

In order to setup MicroPython in a PSoC6™ board, the device-setup command of the mpy-psoc6 can be executed. Follow the instructions to select the target PSoC6™ board, and deploy the latest MicropPython firmware version:

./mpy-psoc6.sh setup-device

You can run any command any time you want to upgrade to the latest MicroPython firmware version. This command will take care of the following steps:

  • Download and install openocd, which is the software required to deploy a firmware file on PSoC6™ controllers

  • Download the latest .hex file for your select board

  • Deploy the latest version of MicroPython firmware on your board

Install a previous version

If you want to setup the device with a previous firmware version, you can check the list of available release in the GitHub release section.

The device-setup command can as well assist you with this process. In this case the board and the desired version need to be passed as arguments.

./mpy-psoc6.sh setup-device CY8CPROTO-062-4343W v0.1.1

Warning

Be sure to provide the board name as shown in the device-setup command when run in interactive mode. Equally, provide a valid tag existing in the release section with the format v.x.y.z. No fail safe mechanisms or error verifications are (yet) implemented on the mpy-psoc6 utility, and the script will fail to retrieve the necessary firmware file.

Direct binary flashing

To be completed. Placeholder.

Getting the firmware

The binary .hex files are available in the GitHub release section. All PSoC6™ firmware versions for each of the supported boards can be found there.

To be completed. Placeholder.

Other installation methods

Cypress Programmer

Alternatively, you can use directly flash the firmware binary file with the Cypress Programmer It allows to program the PSoC6™ microcontrollers family in a few clicks from your Windows, Linux or Mac OS machine. Follow the instructions on the provided link to download and install the tool.

After that, select the downloaded MicroPython firmware .hex file to be deployed on the PSoC6™. Then, in the upper menu, select the connected Probe/Kit, click on Connect, and finally click on Program. The log section will show the progress and inform when the firmware deployment on the controller is completed.

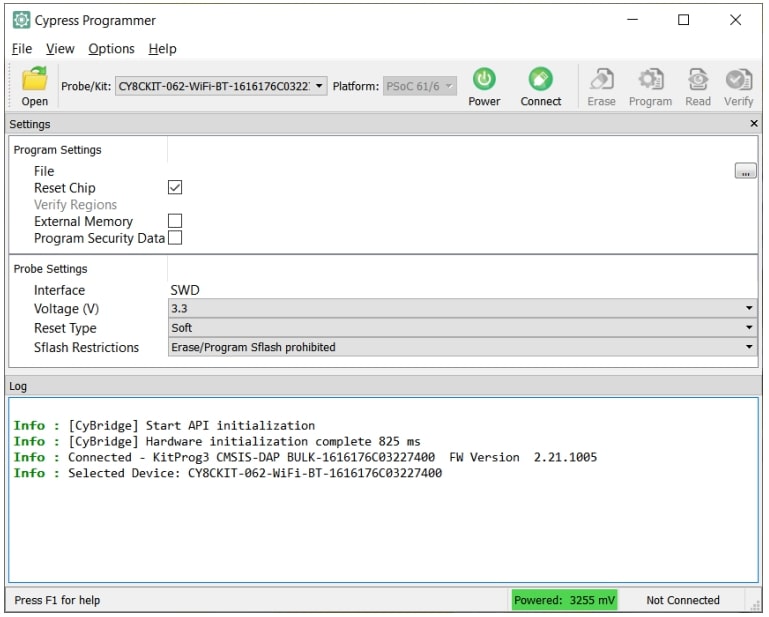

Cypress Programmer GUI

For a detailed description on how to use the Cypress Programmer tool, please consult the Cypress Programmer User Guide.
