Installing MicroPython¶

To support the MicroPython PSoC6™ port installation the mpy-psoc6 utility script is provided for Windows and Linux. You can easily download from your OS terminal with the following command:

curl -s -L https://raw.githubusercontent.com/infineon/micropython/ports-psoc6-main/tools/psoc6/mpy-psoc6.sh > mpy-psoc6.sh

Add execution rights to the script:

chmod +x mpy-psoc6.sh

Download the mpy-psoc6 utility script:

curl.exe -s -L https://raw.githubusercontent.com/infineon/micropython/ports-psoc6-main/tools/psoc6/mpy-psoc6.cmd > mpy-psoc6.cmd

Find all the available commands and options by running the script with the command help:

./mpy-psoc6.sh help

./mpy-psoc6.cmd help

Quick Start¶

With the mpy-psoc6 utility script downloaded, the fastest way to get you up and running with micropython is to run the quick-start command of the script:

./mpy-psoc6.sh quick-start

mpy-psoc6.cmd quick-start

The command will take care of the following:

Install all required software to work with MicroPython
Deploy the latest version of MicroPython PSoC6 firmware on your board
Launch Arduino Lab MicroPython IDE

This command is supporting the getting started tutorial for the first time. Once you get familiar with MicroPython and its environment, the device-setup command will be more appropriate to install MicroPython on PSoC6™ boards, and upgrade your device with the latest firmware.

Device setup¶

In order to setup MicroPython in a PSoC6™ board, the device-setup command of the mpy-psoc6 can be executed. Follow the instructions to select the target PSoC6™ board, and deploy the latest MicropPython firmware version:

./mpy-psoc6.sh device-setup

mpy-psoc6.cmd device-setup

You can run any command any time you want to upgrade to the latest MicroPython firmware version. This command will take care of the following steps:

Download and install openocd, which is the software required to deploy a firmware file on PSoC6™ controllers
Download the latest .hex file for your select board
Deploy the latest version of MicroPython firmware on your board

Install a previous version¶

If you want to setup the device with a previous firmware version, you can check the list of available release in the GitHub release section.

The device-setup command can as well assist you with this process. In this case the board and the desired version need to be passed as arguments.

./mpy-psoc6.sh device-setup CY8CPROTO-062-4343W v0.1.1

mpy-psoc6.cmd device-setup CY8CPROTO-062-4343W v0.1.1

Warning

Be sure to provide the board name as shown in the device-setup command when run in interactive mode. Equally, provide a valid tag existing in the release section with the format v.x.y.z. No fail safe mechanisms or error verifications are (yet) implemented on the mpy-psoc6 utility, and the script will fail to retrieve the necessary firmware file.

Direct binary flashing¶

Another alternative to program the board is to directly provide the binary file. The firmware-deploy command is providing this option. This commands is skipping all the tools download and installation, neither download the MicoPython firmware. Therefore, it requires that openocd is already installed and available in the system path. In exchange, it will be faster for batch flashing, or any situation where subsequent binary flashing needs to be performed.

The board needs to be specified, and the path and name of the .hex file:

./mpy-psoc6.sh firmware-deploy CY8CPROTO-062-4343W pathtodir/mpy-psoc6_CY8CPROTO-062-4343W.hex

mpy-psoc6.cmd firmware-deploy CY8CPROTO-062-4343W pathtodir/mpy-psoc6_CY8CPROTO-062-4343W.hex

Erasing the device (external) file system¶

Some PSoC6™ boards include an external flash memory which is used by the MicroPython file system. This memory will not be erased when reprogramming or erasing MicroPython firmware via device-setup or firmware-deploy. Use the device-erase command to erase of the external memory of your PSoC6™ device:

./mpy-psoc6.sh device-erase

mpy-psoc6.cmd device-erase

Warning

This command flashes the PSoC6™ controller with a custom program to delete the external memory. Thus, MicroPython will be removed from the microcontroller. Use any of the script commands described above to reinstall MicroPython.

Getting the firmware¶

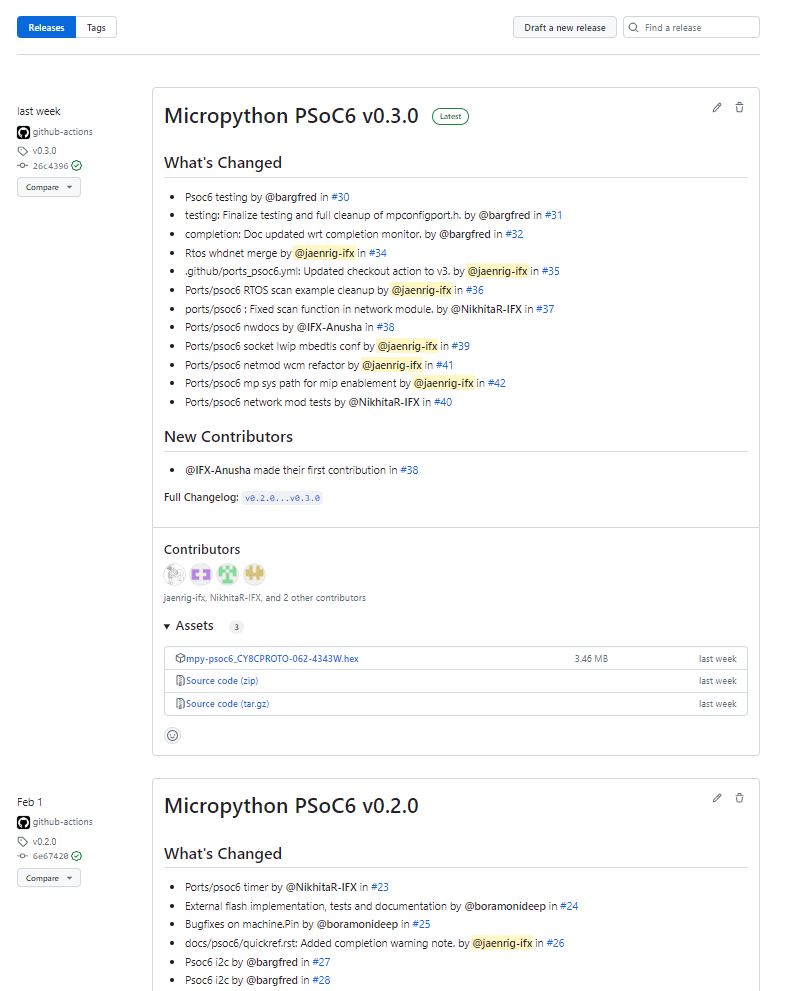

The binary .hex files are available in the GitHub release section. All PSoC6™ firmware versions for each of the supported boards can be found there.

Other installation methods¶

Cypress Programmer¶

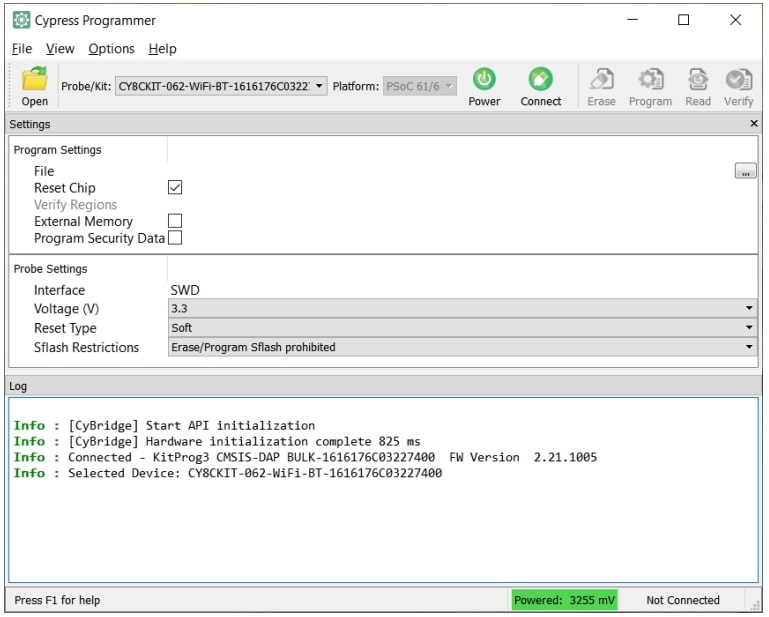

Alternatively, you can use directly flash the firmware binary file with the Cypress Programmer It allows to program the PSoC6™ microcontrollers family in a few clicks from your Windows, Linux or Mac OS machine. Follow the instructions on the provided link to download and install the tool.

After that, select the downloaded MicroPython firmware .hex file to be deployed on the PSoC6™. Then, in the upper menu, select the connected Probe/Kit, click on Connect, and finally click on Program. The log section will show the progress and inform when the firmware deployment on the controller is completed.

For a detailed description on how to use the Cypress Programmer tool, please consult the Cypress Programmer User Guide.
